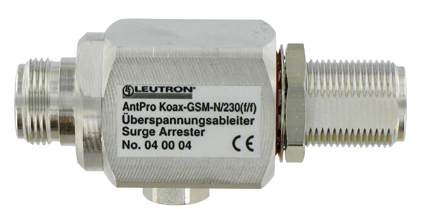

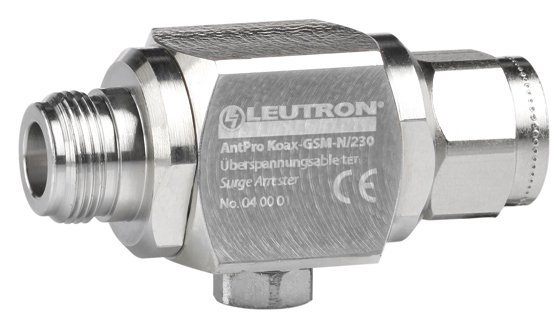

AntPro Koax-GSM-N/230(f/f)

Article Nr. : 040004

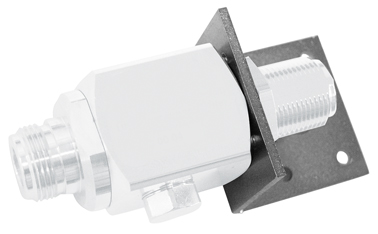

AntPro Koax-GSM-N was designed for the coarse protection of highly sensitive electronical HF amplifiers, e.g., for GSM aerial systems with GSM aerial cable RG213/U (max. 180 W at max. 1 GHz, Ø 10.5 mm). The f/f version can be mounted in a mounting plate or with an angle bracket.
  • High performance surge arrester for broadband applications with frequency ranges from DC up to 2.5 GHz.
  • Applicable at the boundaries LPZ 0B - 1 and higher
  • Test standard: IEC 61643-21 / EN 61643-21
  • Connector according to IEC 61169-16
  • With holder (metall)
IEC category C2 / C1 / C3
Max. continous operating voltage DC/ACUc 115 V
DC spark-over voltageUas 230 V=
Nominal currentIL ≤ 2,5 A
C2 nominal discharge current (8/20 µs)In 10x 15 kA
Max. impulse discharge current (8/20 µs)Imax 1x 40 kA
Protection level line-earth at 1kV/μs and InUp ≤ 700 V
Response time at 1 kV/μstA < 50 ns
Max. aerial capacity (permanent HF capacity at VSWR = 1.1)Pmax 280 W
Surge impedanceZ 50 Ω
Additional Information
Frequency rangefO 0 - 2500 MHz
Return lossRL typ.: 1GHz: 30 dB/2,5 GHz: 23 dB
Insertion lossfE typ.:1GHz<0.1dB/2.5 GHz<0.2 dB
Insulation resistanceRisol ≥ 5 GΩ
Vertical resistance inner conductorR ≤ 2 mΩ
Vertical resistance outer conductorR ≤ 0,5 mΩ
Operating temperature rangeTU -30 - +100 °C
Degree of protection (IEC EN 60529) IP 67
Plug connector N (f/f)
Material of spring CuBe2
Materials: housing/insulation/sealing CuZn39Pb3/PTFE/silicone
