DP 2-2MB-Tr

Article Nr. : 240017

Technical Data

Operating Manual

Specification Texts

CAD Model

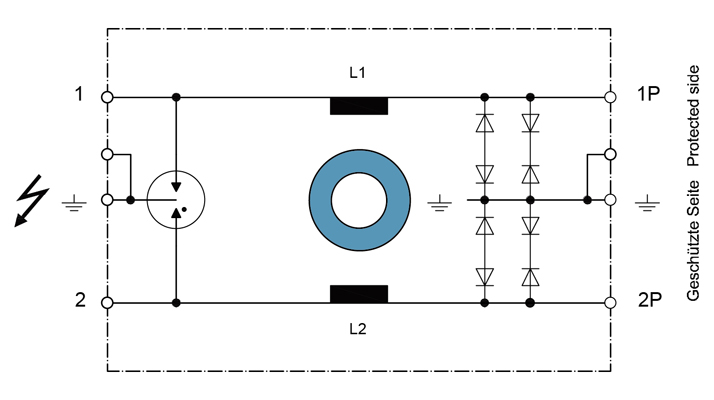

EMC filter for data and signal lines combined with surge protection enables smooth operation of sensitive electronic equipment in rough environment.
  • Signal and data line protection with low-pass filter
  • Signal and data line protection with low-pass filter
  • Applicable for transmission rates of 2 MBit/s (ISDN, PCM)
  • Applicable at the boundaries LPZ 0B - 2 and higher
  • Mounting on 35 mm DIN rail (EN 60715)
  • Space required for installation: 18 mm
  • EAC certification
IEC category C2 / C1 / C3
Nominal voltage DCUN 150 V=
Max. continuous operating voltage DCUc 170 V=
Max. continuous operating voltage AC (50/60 Hz) Uc 120 V~
Nominal currentIL 0,5 A
C2 nominal discharge current (8/20 µs) totalImax 10 kA
C2 nominal discharge current (8/20 µs) per lineIn 5 kA
Protection level line-earth at 1 kV/µsUp ≤ 600 V
Max. frequencyfG 8 MHz
Operating temperature rangeTU -25 - +85 °C
Additional Information
DC resistance per pathR 0,5 Ω
Signal tranismission rate max. 2 Mbit/s
Max. conductor cross section 2.5mm² solid or 1.5mm² flexible with sleeve
Max. connection torque for terminals 1,5 Nm
Dimension (DIN 43880) 1 TE

Accessories

Grounding bridge

Article Nr.: 170080
